Technical Data
◆Rating: 250A CO2
220A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～1.6mm
Model | |||
Description | Part No. | ||
GT-SBME125 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT 01.00.125 | GT 01.00.126 | GT 01.00.127 | |
Nozzles | |||
Pos. | Part No. | Ø | Description |
01 | GT 01.03.536 | 12 |
|
GT 01.03.511 | 15 | ||
02 | GT 01.03.529 | 09 |
|
Contact tips | ||||
Pos. | Part No. | Ø | Description | Material |
03 | GT 01.07.020 | 0.8 |
| E-Cu |
GT 01.07.021 | 0.9 | |||
GT 01.07.022 | 1.0 | |||
GT 01.07.023 | 1.2 | |||
GT 01.07.024 | 1.6 | |||
04 | GT 01.07.176 | 0.8 |
| E-Cu |
GT 01.07.177 | 0.9 | |||
GT 01.07.178 | 1.0 | |||
GT 01.07.179 | 1.2 | |||
GT 01.07.180 | 1.6 | |||
Liners | |||
Pos. | Part No. | Ø | Description |
23 | GT 01.50.800 | 0.8 | Steel Liner 0.8~1.0mm 3.5m |
GT 01.50.801 | 0.9 | Steel Liner 0.8~1.0mm 4.5m | |
GT 01.50.802 | 1.0 | Steel Liner 0.8~1.0mm 5.5m | |
GT 01.50.803 | 1.2 | Steel Liner 1.2mm 3.5m | |
GT 01.50.804 | Steel Liner 1.2mm 4.5m | ||
GT 01.50.805 | Steel Liner 1.2mm 5.5m | ||
GT 01.50.806 | 1.6 | Steel Liner 1.6mm 3.5m | |
GT 01.50.807 | Steel Liner 1.6mm 4.5m | ||
GT 01.50.808 | Steel Liner 1.6mm 5.5m | ||

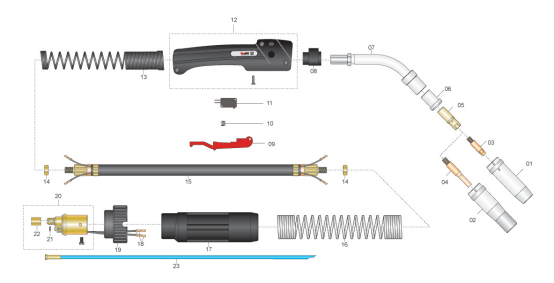

Compontents | ||
Pos. | Part No. | Description |
01 | Gas nozzle | |
02 | Gas nozzle | |
03 | Contact tip | |
04 | Contact tip | |
05 | GT 01.11.400 | Tip holder |
06 | GT 01.15.440 | Insulator |
07 | GT 01.20.571 | Swan neck |
08 | GT 01.20.622 | Torch body plastic |
09 | GT 01.30.710 | Trigger |
10 | GT 01.34.690 | Trigger spring |
11 | GT 01.45.680 | Switch |
12 | GT 01.25.620 | Front handle |
13 | GT 01.34.001 | Front spring cable support |
| 14 | GT 01.32.001 | Nut |
| 15 | GT 01.37.723 | Cable assembly 25mm 3m |
GT 01.37.724 | Cable assembly 25mm 4m | |
GT 01.37.725 | Cable assembly 25mm 5m | |
16 | GT 01.34.002 | Back spring cable support |
17 | GT 01.41.001 | Gun plug housing |
18 | GT 01.63.002 | Wire connector |
19 | GT 01.32.003 | Central adaptor |
20 | GT 01.45.770 | Euro central adaptor |
21 | GT 01.53.001 | O-Ring |
22 | GT 01.32.004 | Coupling nut |
23 | Liner | |
