Technical Data
◆Duty Cycle: 40 Amps 60%
◆Air Pressure: 4.5-5.5 bar
◆Standard Length: 5m
Model | |
Part No. | Description |
S 45 Complete Torch | |
S 45 Torch Head With Handle | |
Compontents | ||

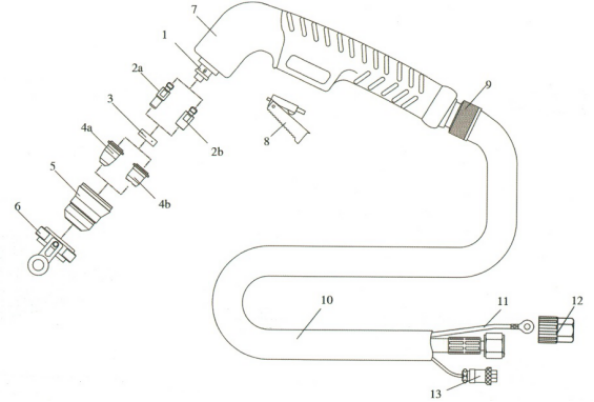

Pos. | Part No. | Description |
1 | PF0125 | S 45 Torch head |
| 2a | PR0110 | Long electrode 20~30A |
2b | PR0105 | Electrode 40A |
| 3 | PE0106 | Swirl ring |
4a | PD0116-08 | Long nozzle 0.8mm 20~30A |
4b | PD0102-10 | Nozzle 1.0mm 40A |
5 | PC0116 | Shield |
| 6 | CV0024 | Site wheel |
| 7 | TP0080 | Handle |
| 8 | BX0020 | Switch |
9 | Uniwersal coupling | |
| 10 | PH0121 | Cable assembly |
| 11 | Pilot cable | |
| 12 | Nut cup | |
| 13 | Panasonic 2-Pin plug | |
Wear Parts | |||
Part No. | Description | ||
Swirl ring | PE0106 | Swirl ring |
|
Part No. | Description | ||
Nozzle | PD0102-10 | Nozzle 1.0mm 40A |
|
Part No. | Description | ||
Electrode | PR0105 | Electrode 40A |
|
Part No. | Description | ||
Nozzle | PD0116-08 | Long nozzle 0.8mm 20~30A |
|
Part No. | Description | ||
Electrode | PR0110 | Long electrode 20~30A |
|
Part No. | Description | ||
Shield | PC0116 | Shield |
|
