Technical Data
◆Rating: 200A CO2
150A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.6～1.2mm
Model | |||
Description | Part No. | ||
GT-TWC200 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT TWC200-3 | GT TWC200-4 | GT TWC200-5 | |

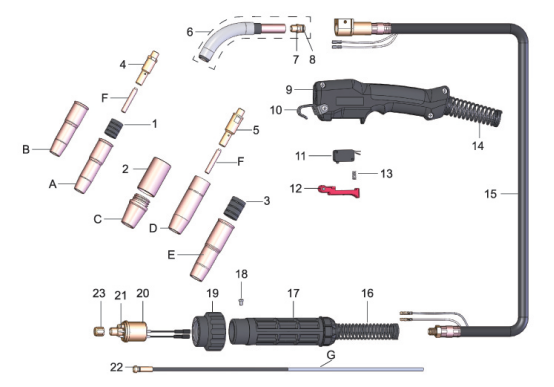

Nozzles | ||
Pos. | Part No. | Description |
A | 22-50 | Nozzle adjustable |
22-62 | Nozzle adjustable | |
| B | 22-50F | Nozzle self insulated |
| C | 24CT50S | Nozzle fixed coarse thread |
| 24CT62S | Nozzle fixed coarse thread | |
24CT57S | Nozzle fixed coarse thread | |
D | 23-50 | Nozzle self insulated |
23-62 | Nozzle self insulated | |
23-75 | Nozzle self insulated | |
| E | 24A50 | Nozzle adjustable |
24A62 | Nozzle adjustable | |
24A75 | Nozzle adjustable | |
Contact tips | ||
Pos. | Part No. | Description |
F | 14-23 | Contact tip 0.023"/0.6mm ECu |
14-30 | Contact tip 0.030"/0.8mm ECu | |
14-35 | Contact tip 0.035"/0.9mm ECu | |
14-40 | Contact tip 0.040"/1.0mm ECu | |
| 14-45 | Contact tip 0.045"/1.2mm ECu | |
14H-35 | Contact tip 0.035"/0.9mm ECu HD | |
14H-40 | Contact tip 0.040"/1.0mm ECu HD | |
14H-45 | Contact tip 0.045"/1.2mm ECu HD | |
Liners | ||
Pos. | Part No. | Description |
G | 42-3035-15 | Steel liner 0.030"-0.035"/0.8-0.9mm 4.5m |
42-4045-15 | Steel liner 0.040"-0.045"/1.0-1.2mm 4.5m | |
42T-3545-15 | Teflon liner 0.035"-0.045"/0.9-1.2mm 4.5m | |
Compontents | ||
Pos. | Part No. | Description |
1 | 32 | Adjustable nozzle insulator |
2 | 34CT | Nozzle insulator coarse thread |
| 3 | 34A | Adjustable nozzle insulator |
| 4 | 52 | Gas diffuser |
5 | 52FN | Gas diffuser |
6 | 62A45J | Jacketed swan neck 45° |
| 62A60J | Jacketed swan neck 60° | |
| 62A45 | Swan neck 45° | |
| 62A60 | Swan neck 60° | |
| 7 | TEF2212 | Gas nipple |
8 | Q508015S | O-Ring 8×1.5 |
| 9 | TEH2101 | Handle |
| 10 | TEG2001 | Hanger hook |
11 | Q711 | Switch |
12 | KJ3003 | Trigger |
13 | Q60512 | Trigger spring |
14 | HS2101 | Front spring cable support |
15 | TEL2030 | Cable assembly 3m |
| TEL2040 | Cable assembly 4m | |
| TEL2050 | Cable assembly 5m | |
16 | ES2201 | Back spring cable support |
17 | EH2201 | Gun plug housing |
18 | EH2211 | Screw M4×6 |
19 | EP3001 | Gun plug nut |
20 | TEU1001 | Tweco euro gun plug |
21 | Q504010 | O-Ring 4×1 |
22 | Q504018 | O-Ring 4×1.8 |
23 | TEU1011 | Nut M11×1 |
