Technical Data
◆Rating: 200A CO2
160A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～1.2mm
Model:
Description | Part No. | ||
GT-P200A Welding Torch, Panasonic Fitting | 3m | 4m | 5m |
GT P200A-3 | GT P200A-4 | GT P200A-5 | |

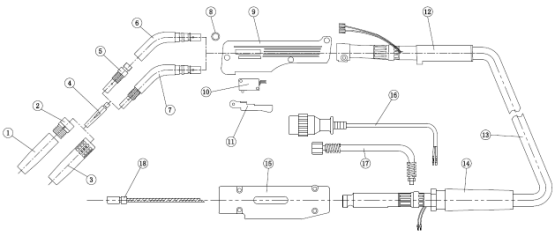

Compontents
Pos. | Part No. | Description |
1 | Gas nozzle | |
2 | Insulator | |
3 | PCN1376 | Gas nozzle |

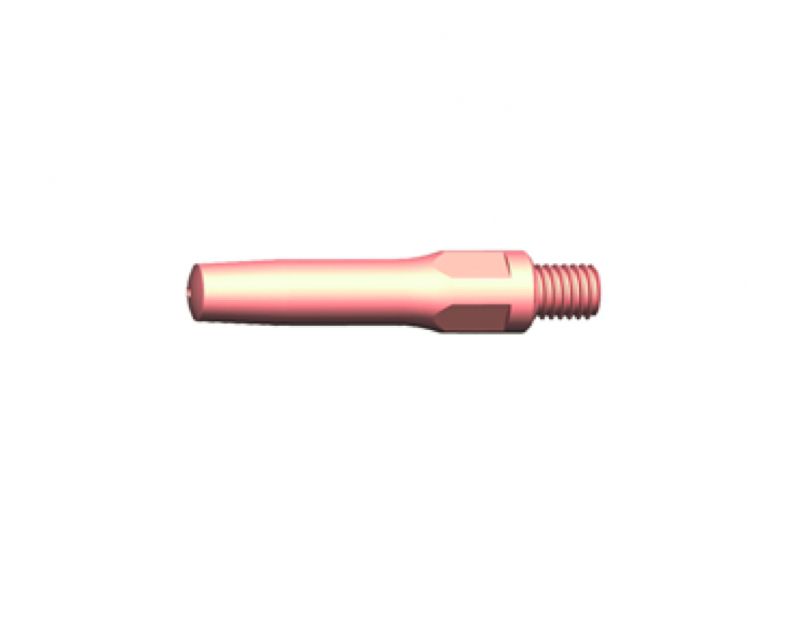

4 | Contact tip | |

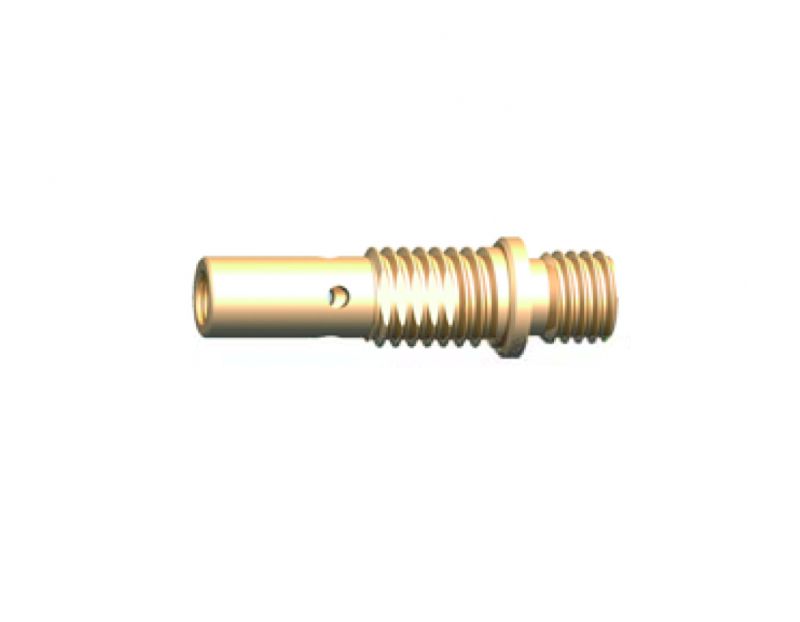

5 | PTH2001 | Contact tip holder |

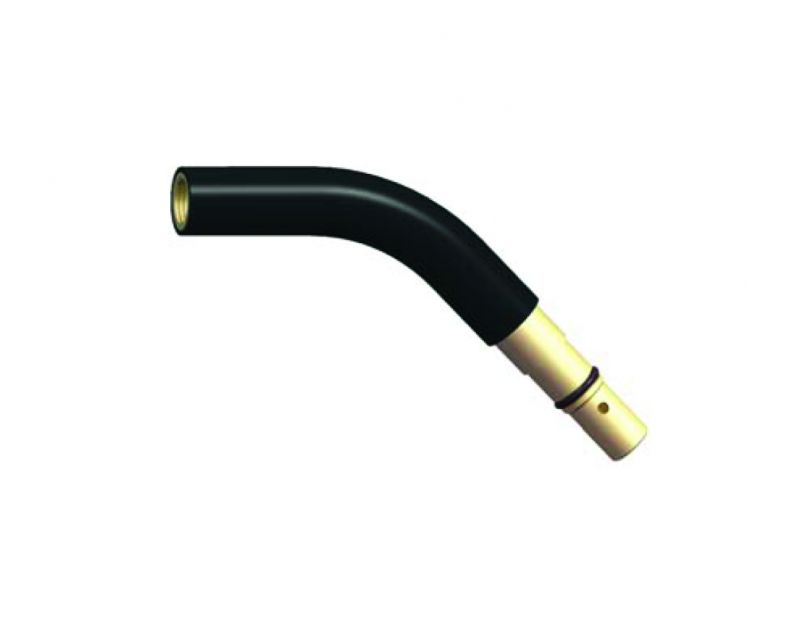

6 | PSNS2001 | Swan neck |
7 | TCU20111 | Swan neck |
8 | P200GASK | Gasket |
9 | P200HAND | Handle |
10 | P200MCW | Microswitch |
11 | P200SWIT | Trigger |
12 | PFCS2001 | Front cable support |
13 | P03CABLE | Troch cable assembly 3M |
P04CABLE | Troch cable assembly 4M | |
P05CABLE | Troch cable assembly 5M | |
14 | PFCS2002 | Back cable support |
15 | PCA20345 | Cable Support machine side |
16 | PCLP2001 | Control lead plug |
17 | P200NUNF | Nut 9/16-18” UNF |
18 | Liner |
