Inverter-arc stud welding machine 1600i 2500i 4000i
Technical Parameter:
Model | 1600i | 2500i | 4000i | |
power supply voltage | V | 3～380V±10% | 3～380V±10% | 3～380V±10% |
rated power output | KVA | 60 | 80 | 120 |
Welding current rating | A | 1600 | 2500 | 4000 |
Welding current adjusting range | A | 300-1600 | 300-2500 | 300-4000 |
Welding scope | Φ | 4-16 | 6-25 | 0-32 |
Welding time | ms | 10-3000 | 10-3000 | 10-3000 |
Welding speed | A/min | 10-30 | 10-20 | 10-20 |
multi-usage | —— | manual welding | manual welding | manual welding |
automatic | automatic | automatic | ||
manual welding gun | manual welding gun | manual welding gun | ||
Protection grade | —— | Ip21 | Ip21 | Ip21 |
Cooling way | —— | Air cooling | Air cooling | Air cooling |
efficiency of | —— | ≥0.85 | ≥0.85 | ≥0.85 |
power factor | —— | ≥0.9 | ≥0.9 | ≥0.9 |
weight of the | Kg | 58 | 92.5 | 92.5 |
Overall dimensions（L、W、H） | mm | 660×350×640 | 780×370×870 | 840×430×1130 |

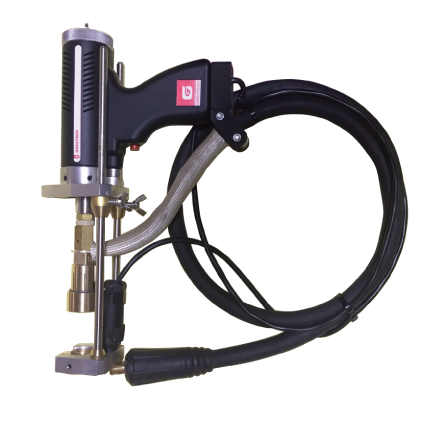

Stud Welding Torch
Technical Parameter | Picture | |
Type | GTLH-V(A) |
|
Welding Mode | Long period mode of ceramic ring protection | |
Stud Welding Scope (mm) | φ13-φ25 | |
Stud Welding Length (mm) | 60-350 | |
Way Into the Pool | Hydraulic buffer insertion | |
Lifting Height | 7mm(Apply toφ13-φ19) | |
10mm(Apply toφ22-φ25) | ||
Coil Voltage | Standard:75V-90V Optional:40V-60V | |
Stand Bar | Standard:300mm Optional:500mm | |
Welding Cable(m/mm2) | 2m 90mm2 | |
Welding Cable Interface | 95mm2 | |
Control Line (m/mm2) | 4*0.5 Shield Line | |
Control Line Interface | C16-1 4cores | |
Torch Weight (Without Cable) | 2.2kg | |
