52 Argon flowmeter gas regulator


If you are interested in our products,
You can order online or call
Email: info@greatechcn.com ORDER NOW
DETAILS OF THE PRODUCT

52 Argon flowmeter gas regulator/Model:GT-23-52



It is applicable to industrial manufacturing, laboratory and gas-shielded welding.The regulator is of single-stage structure ,the electrical heating structured ensure the gas would not be frozen and there are three input voltage specifications of ac 36v,110v and 220v available; the main body is forged and fashioned from high-quality brass, chmate-faced or in nature color ;the upper cover structure is made from Q235,Zinc alloy and copper, the air inlet tubes are installed with sintered bronze filters;2” pressure gauge and flow tube ,manufactured from impact-strength composite materials ,are safe, durable and reliable.


Model

Applicable Gas

Max. Input Pressure

Max. Output Pressure

Inlet

Outlet

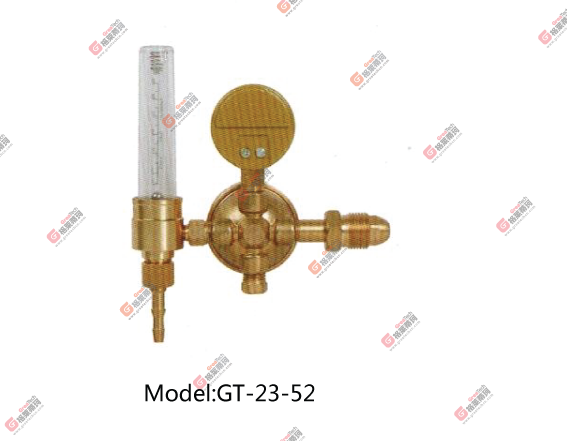

GT-23-52

AR

150 bar

25 L/min

G 5/8

9/16-18UNF

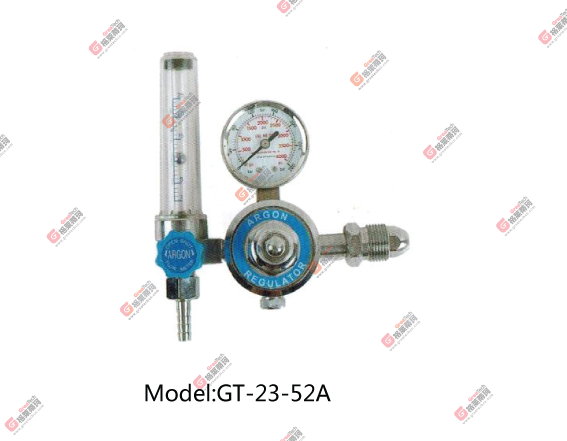

GT-23-52A

AR

150 bar

25 L/min

G 5/8

9/16-18UNF

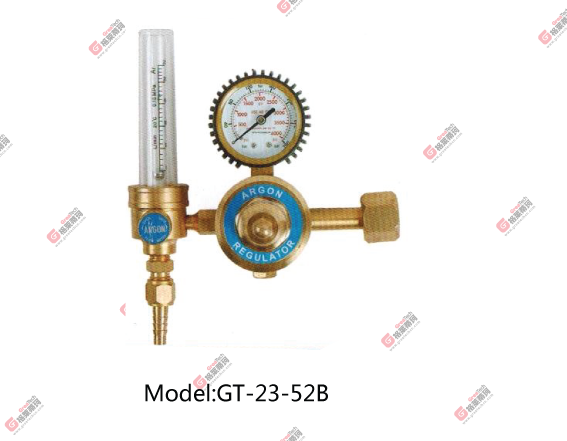

GT-23-52B

AR

150 bar

25 L/min

W21.8-14

9/16-18UNF

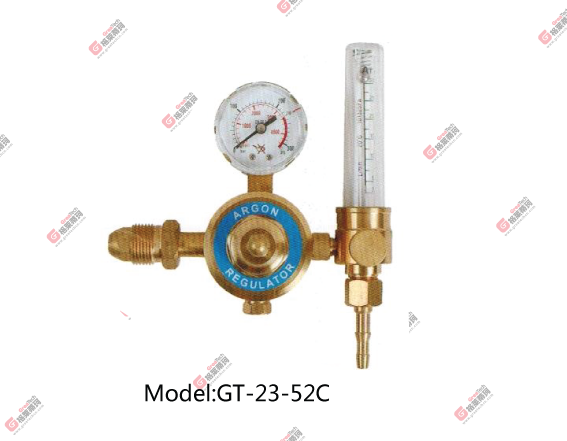

GT-23-52C

AR

150 bar

25 L/min

G 5/8

G3/8
