JSCUT-200 is high quality water cooling plasma power source for CNC cutting which has high pierce capability and can achieve high verticality. JSCUT-200 adopts the full-bridge soft-switching technology, current can be adjustable between 35A-200A steplessly, it can make cutting operation more controllable It is heavy duty, 100% duty circle, and it has built in multi protections for over current, over voltage, over air-pressure, over temperature etc, allows you to work 24 hours continuously.
Technical Parameters
Rated Input Voltage | V | 3x380(50Hz/60Hz) +/- 10% |
Rated Input Power | KVA | 40 |
Cutting Current | A | 35-200 |
Duty Circle | - | 200A/100% |
Cutting Thickness | mm | According to Material. |
Pierce Thikcness | mm | 25 |
Quality Cutting | mm | 45 |
Max. Cutting | mm | 55 |
Working Gas | - | Air/N2 |
Gas Volume | L/min | 150 |
Working Gas Pressure | MPa | 0.5 |
Cooling Method | - | Water |
Weight of Machine | kg | 90 |
Size of Machine | cm | 69x37x81 |

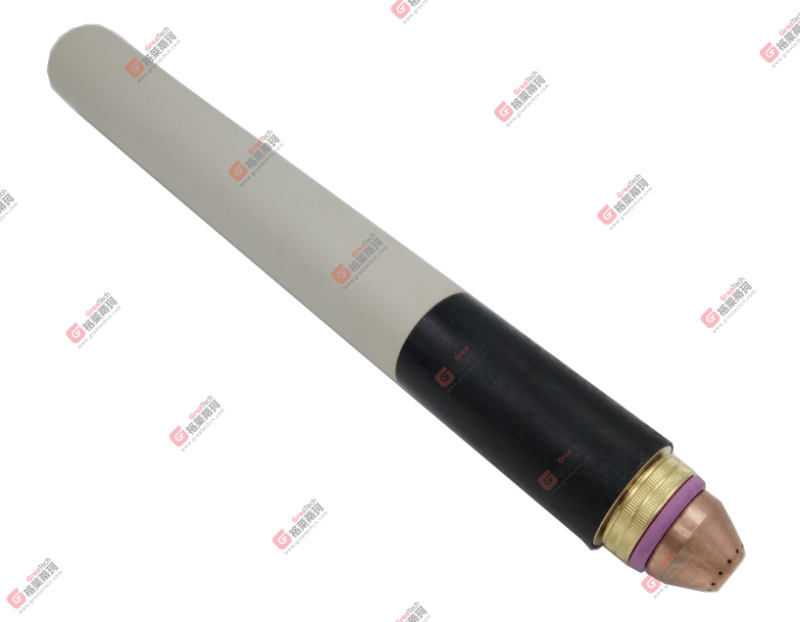

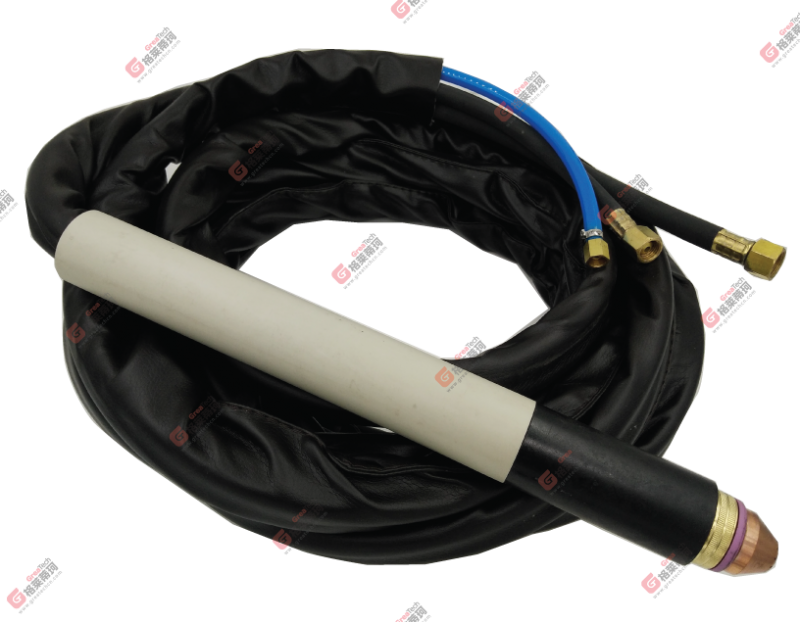

【HC2003 part name and code】
Cutting Method | Cutting Torch | Current （A） | Electrode | Nozzle | Protective Cap | Water Tube | Copper Sleeve | Diffuser |
Dry Cutting | HC2003 | 40-100 | 231020 | 232010 | 233020 | 234020 | 215020 | 236020 |
110-115 | 232020 | |||||||
160-200 | 212020 |
